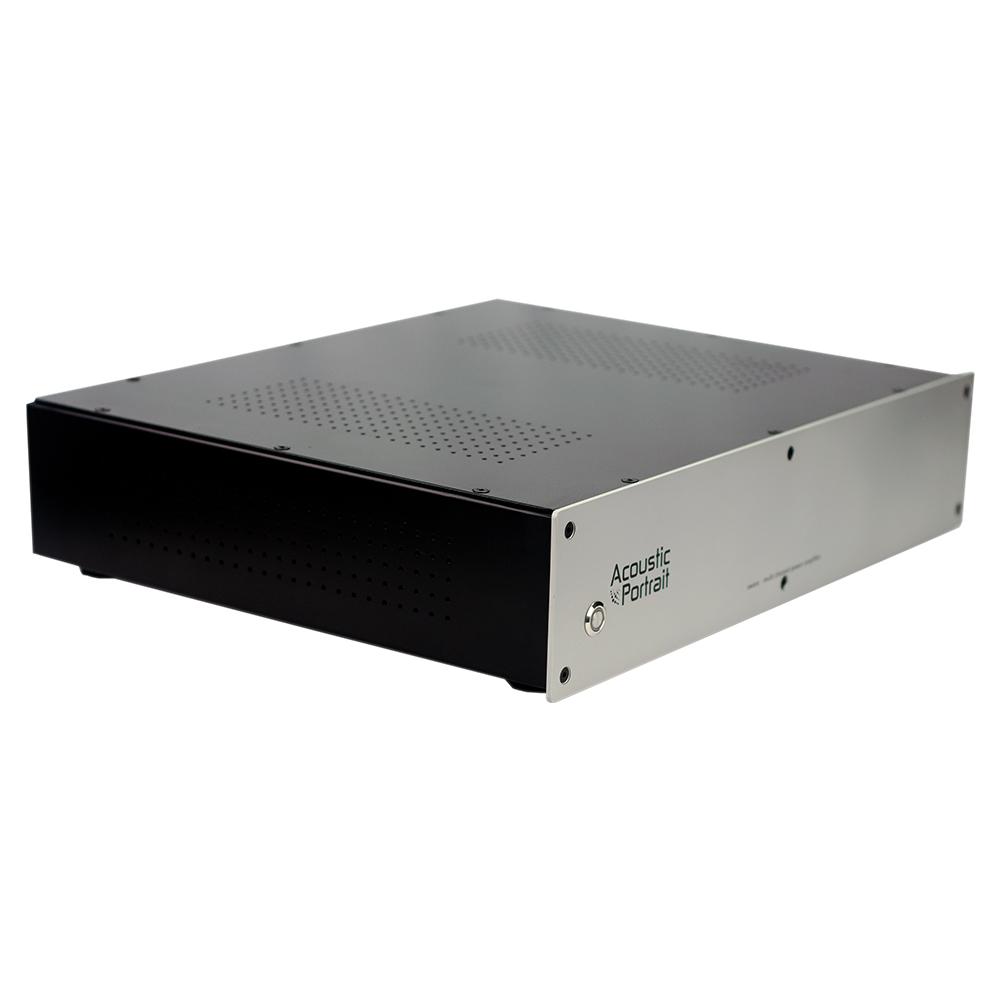

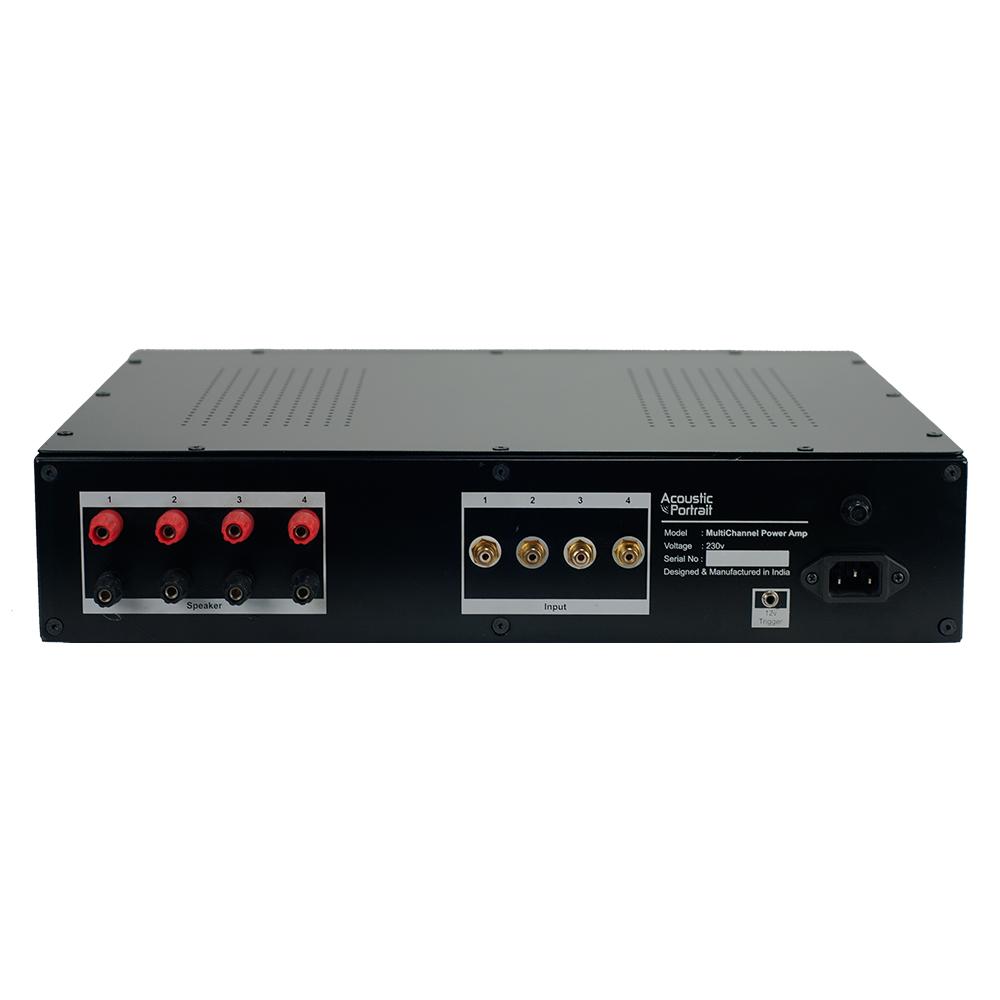

Acoustic Portrait - Swara Multi-Channel Power Amplifier


Multi-Channel Power Amplifier

Swara Multi-Channel Power amplifier is an audiophile grade amplifier for home theatre. Connect the pre-out from AV receivers to this power amplifier and let it driver your loudspeakers. The sound that will be more transparent, dynamic, detailed and much more musical.

The amplifier includes a high current design with ample power headroom. The lower distortion of this amplifier, combined with its ability to drive speakers effortlessly, will help you experience a truly expansive and immersive soundstage that is very important for the home theater.

The power amplifier will meet the demands of the most discerning audiophiles and home theatre fans. The amplifier offers a fluid presentation that is made possible by low distortion, neutral sonic character, good dynamics & resolving capability.

Because the product has a job inside the room.

Class AB design
12v trigger to integrate with home automation tools
Slow start of amplifier to protect loudspeaker
Transparent, dynamic, & high resolution audio reproduction
Industrial grade enclosure made with heavy gauge steel
Custom made soft rubber feet for mechanical isolation
Technical Specifications
Construction Type

Multi-Channel Power Amplifier

Power Output

80 watts/channel @ 8Ω

Frequency Response

20Hz-22kHz, +/- 3dB

Distortion

< 0.005%

Dimensions

33.5 x 34 x 9.5 cm / 13.25" (W) x 14.5" (D) x 4" (H)

Weight

6 kg / 8 Kgs

Additional Specs

Input Impedance: 26 kΩ
