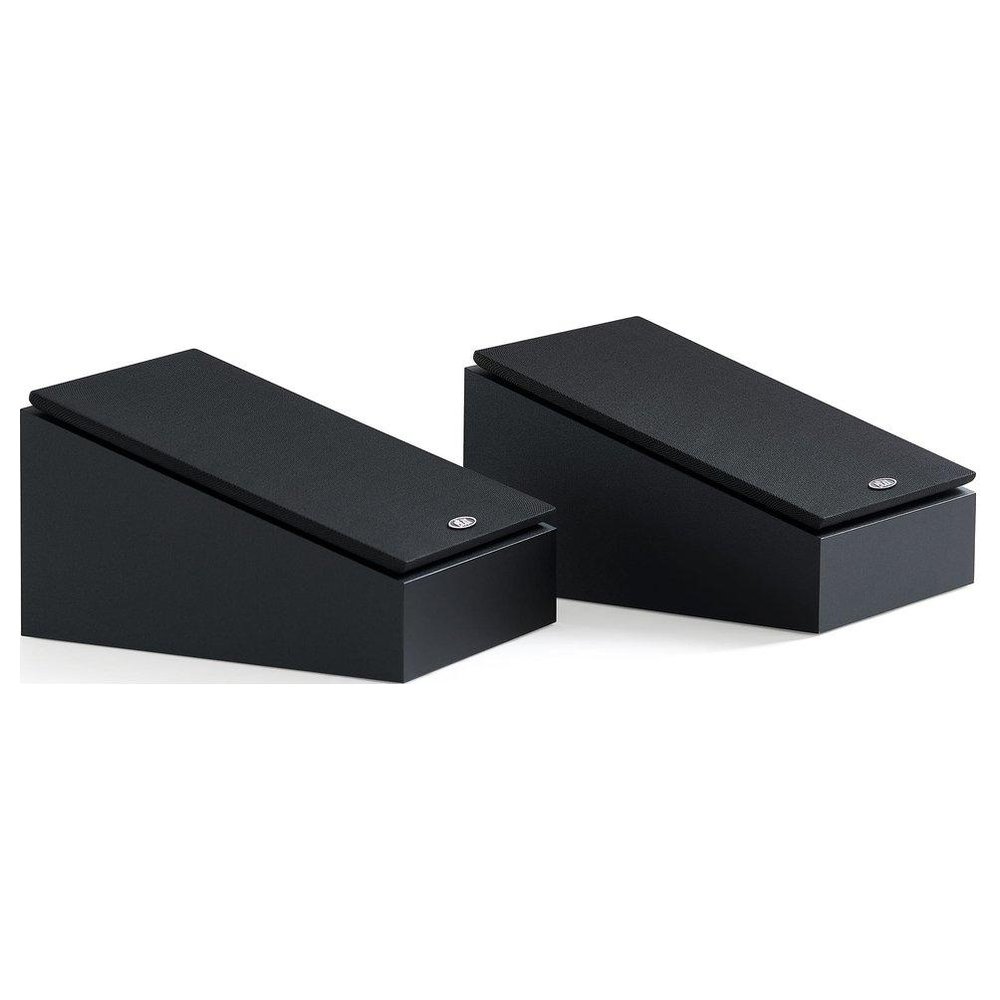

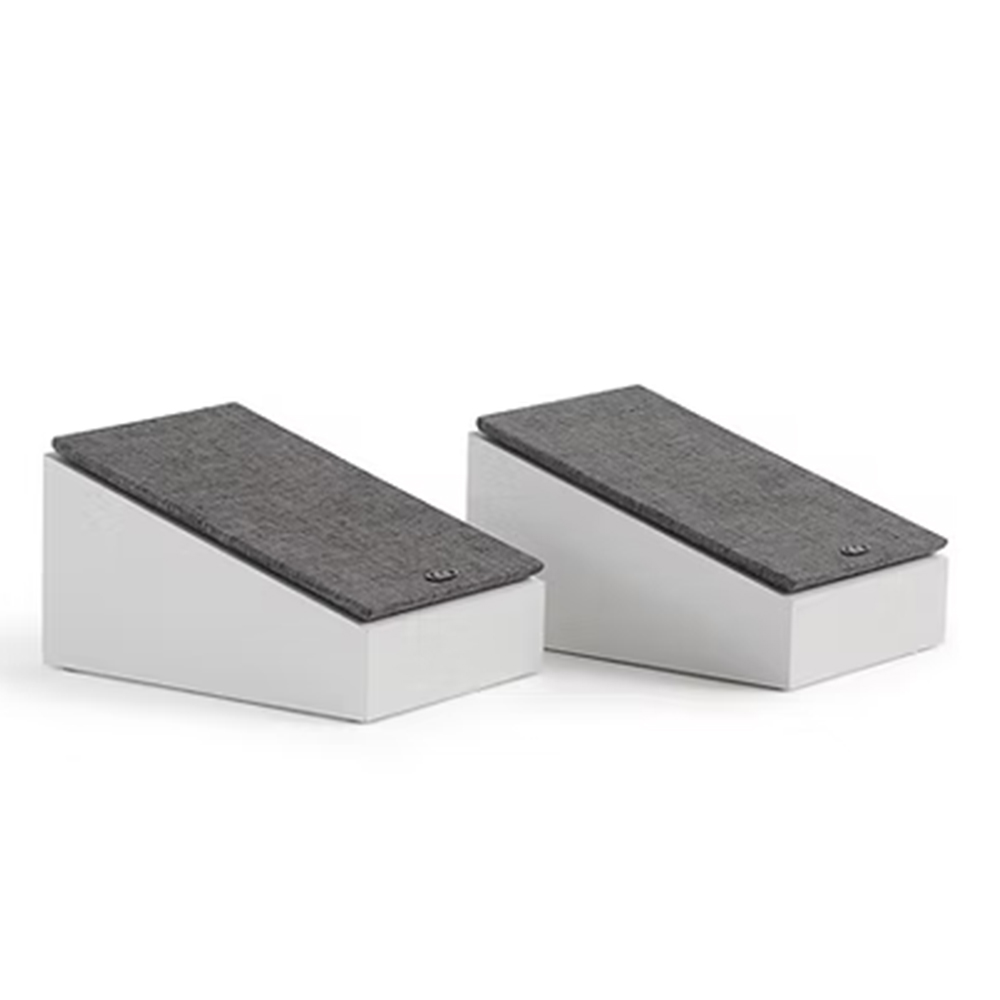

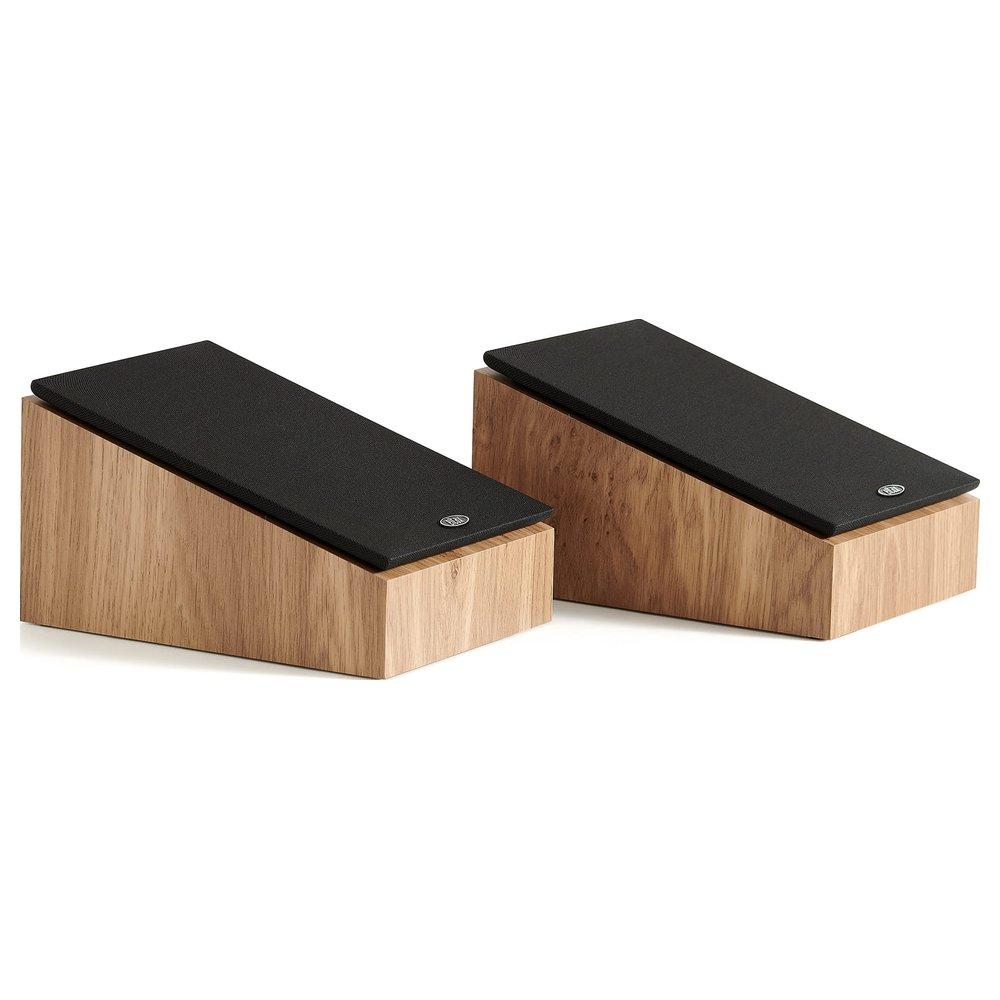

Eltax - Monitor ATM Neo


An essential complement for enjoying three-dimensional sound, the Dolby Atmos-certified Eltax Monitor ATM Neo speaker benefits from an optimized crossover network.

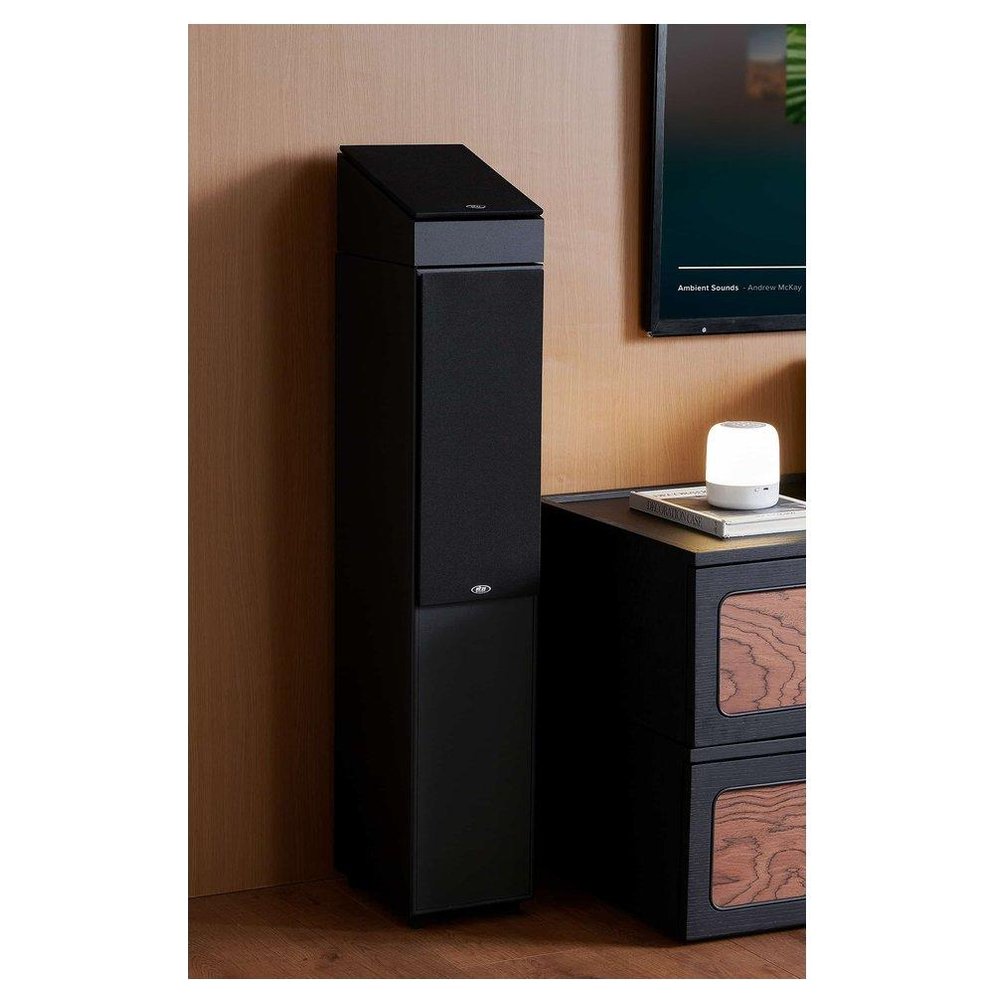

Designed to be placed directly on your Monitor IX Neo or Monitor III Neo speakers, this closed 2-way 50 W RMS speaker exploits ceiling reflection to diffuse vertical effects with precision.

It relies on a coaxial speaker that integrates a 120 mm cellulose pulp bass-midrange and a 19 mm dome tweeter, guaranteeing a frequency response of 70 to 20,000 Hz and a sensitivity of 88 dB.

Because the product has a job inside the room.

Technical Specifications
Construction Type

Dolby Atmos certified speaker - 2-way - Closed

Frequency Response

70 - 20000 Hz (±3 dB)

Tweeter Driver

Dome : 19 mm

Midrange Woofer Driver

120 mm Cellulose pulp

Nominal Impedance

6 Ω

Sensitivity

88 dB / 1W / 1m

Power Handling

50 W RMS / 80 W Peak

Crossover Frequency

3600 Hz - 18 dB / 12 dB + Dolby Atmos network

Dimensions

W195 × H148 × D258 mm

Weight

3 kg
