IOTAVX - PA3


Stereo Power Amplifier

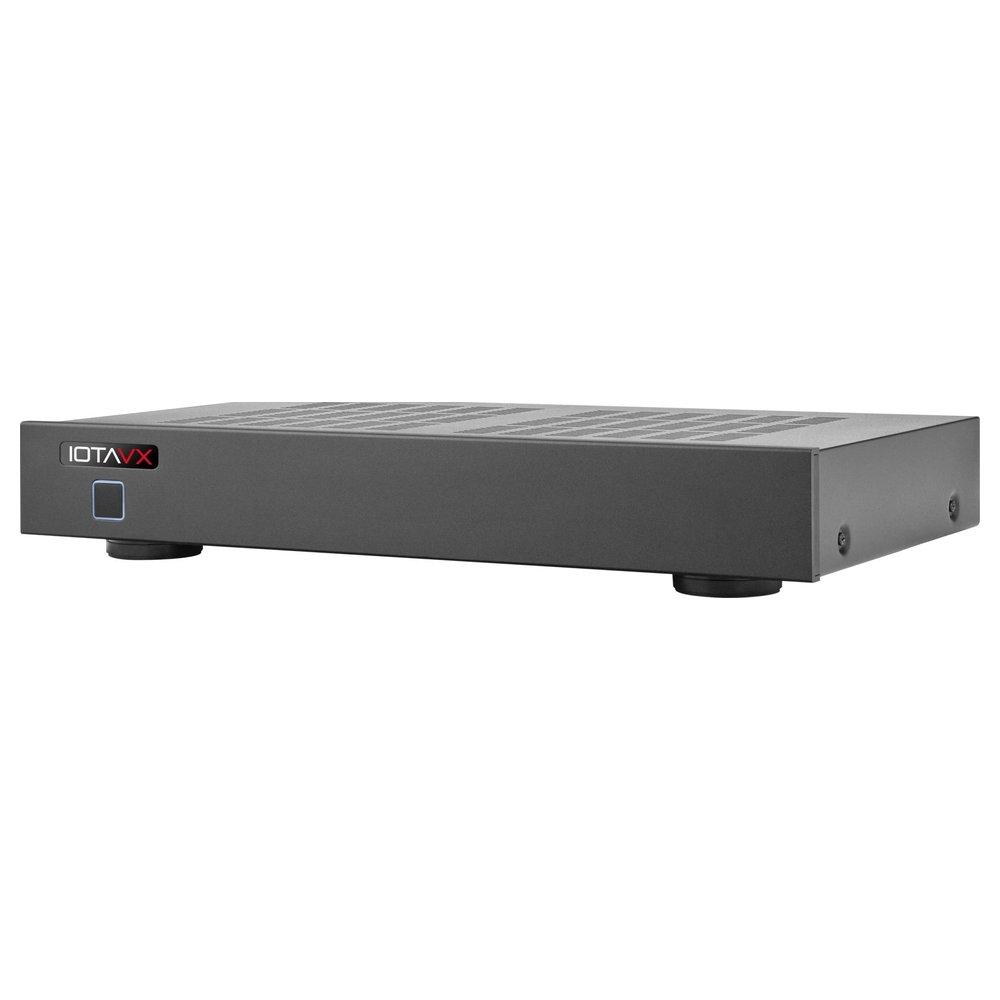

 It is flat and unobtrusive, in a noble, timelessly simple housing, but thanks to 2 x 90 watts at 4 ohms, it offers considerable power reserves.

The Class AB amplifier technology used impresses with high pulse fidelity and excellent dynamics. If you want enormous performance in a simple way, you can also use the PA3 together with the SA3 integrated amplifier. No less than 180 watts / 4 ohms are then available per channel.

This is also enough for performance-hungry loudspeakers and large listening rooms.

Because the product has a job inside the room.

Technical Specifications
Construction Type

Stereo Power Amplifier

Power Output

45W (8Ω, 2 Channels), 90W (8Ω, 1 Channel bridged), 90W (4Ω, 2 Channels), 180W (4Ω, 1 Channel bridged),

Frequency Response

10Hz - 100kHz

Distortion

=0.005% (80% Power Output, 1 kHz)

Dimensions

435 x 70 x 240 mm (Height incl. feet)

Weight

6,5 kg

Voltage

115VAC or 230VAC, @ 50/60Hz

Standby Consumption

<0.5W

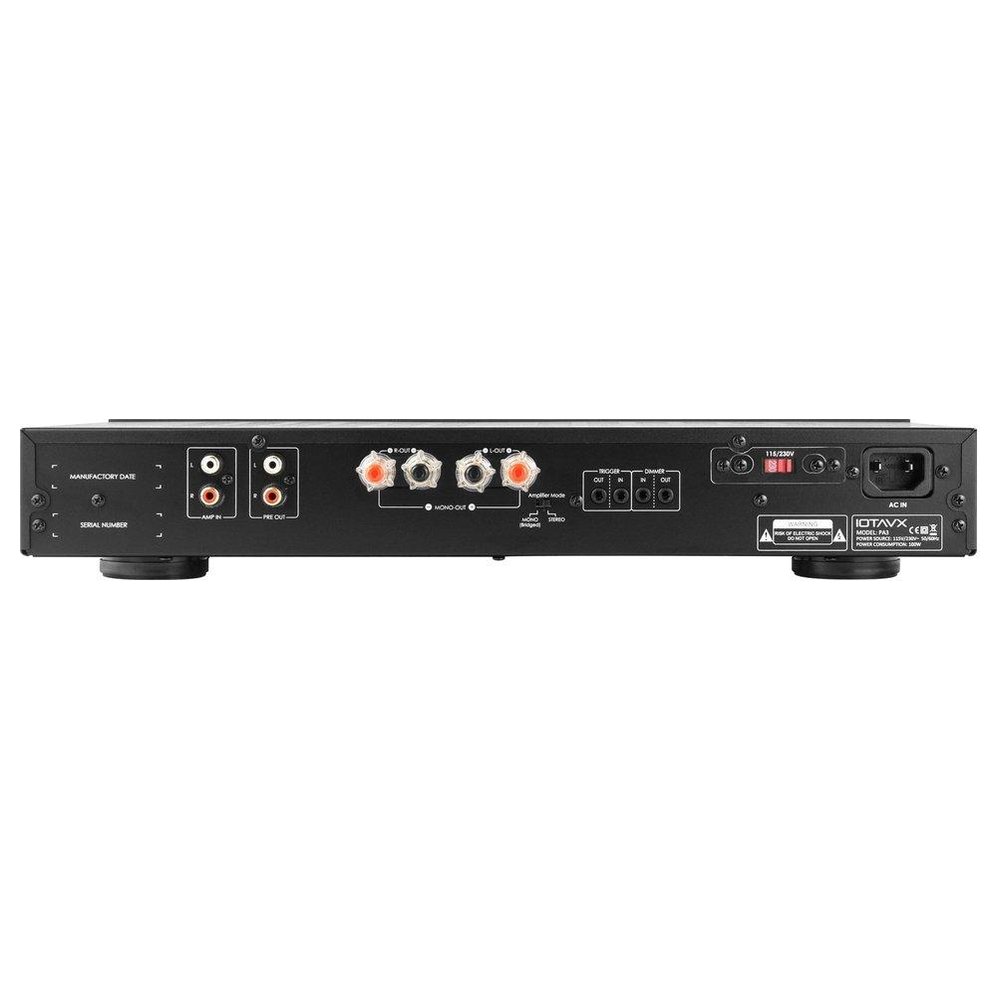

Connections

RCA-Inputs,1x Pre Out

Snr

>105dB (32W, A-Weighting)
