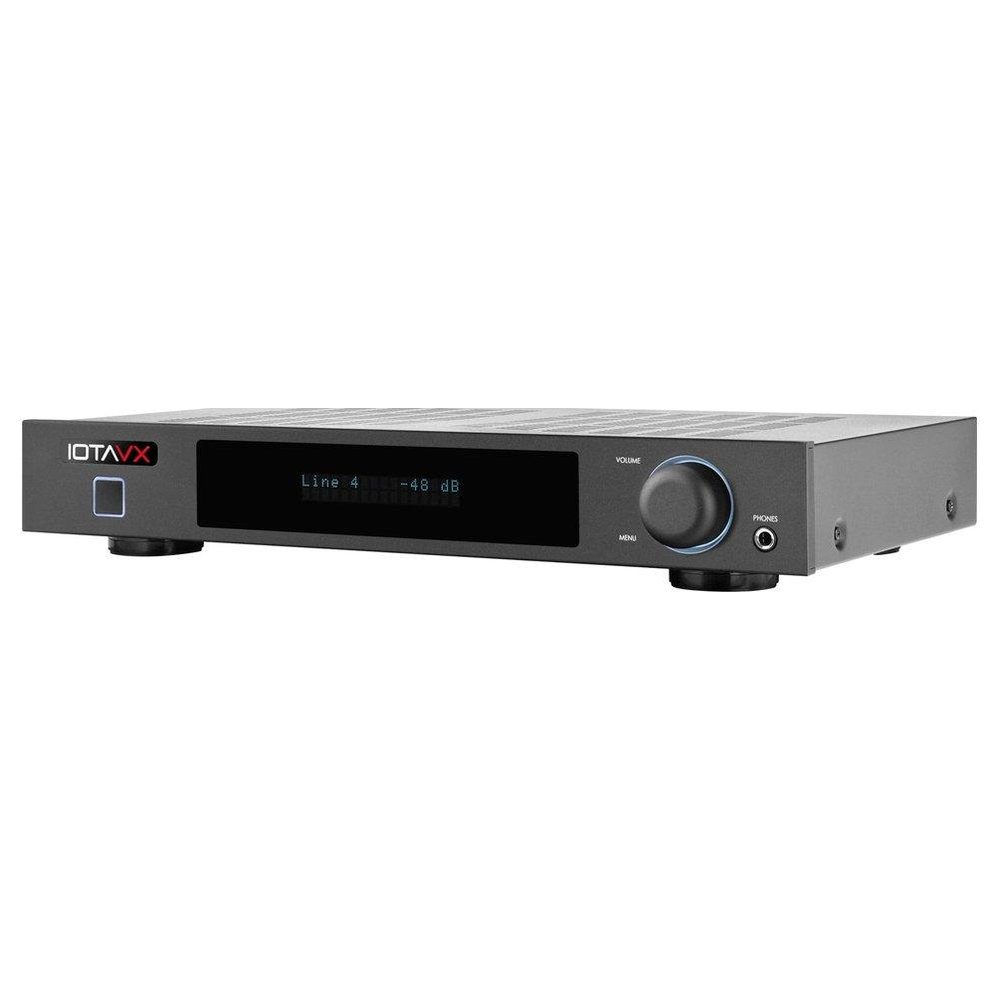

IOTAVX - SA3 - Stereo Integrated Amplifier
Stereo Integrated Amplifier
With 90 watts per channel (at 4 ohms), the IOTAVX SA3 provides enough power for the operation of loudspeakers that have only average efficiency. At the same time, it is not difficult to use the integrated amplifier in the larger listening room without restrictions. The built-in Class AB amplifier works with a high degree of efficiency, moreover it is impulse-true and low in distortion. The high quality components in the prepress ensure the shortest possible signal paths and a high acoustic purity. D / A converters from the well-known Wolfson brand ensure very precise conversion of digital signals into analog ones.
The equipment of the SA3 is also impressive. A Phono MM preamplifier, tone control for bass and treble range, five cinch inputs as well as an optical plus a coaxial digital input - everything the stereo fan needs is on board. A Bluetooth dongle is optionally available. In addition, the SA3 can be combined with the IOTAVX stereo power amplifier PA3 thanks to the appropriate connection options - then a whopping 180 watts per channel are available.
Because the product has a job inside the room.
Stereo Integrated Amplifier
45W (8Ω, 2 Channels), 90W (8Ω, 1 Channel bridged), 90W (4Ω, 2 Channels), 180W (4Ω, 1 Channel bridged),
10Hz - 100kHz
=0.005% (80% Power Output, 1 kHz)
435 x 70 x 240 mm (Height incl. feet)
6,5 kg

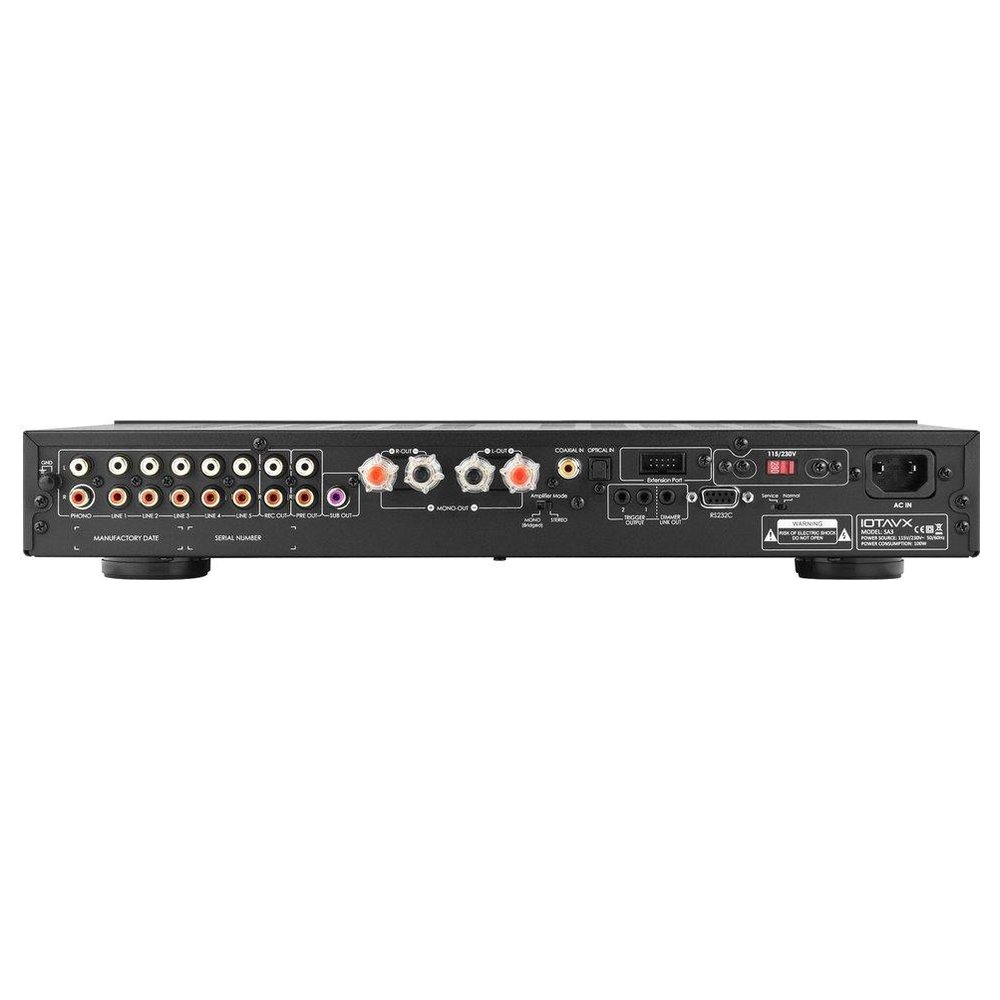

Additional In- and Outputs: 1x RS-232 Input, 2x Trigger Output, 1x Dimmer Control (10 Steps)
5x RCA (Input sensitivity 200mV), 1x S/PDIF coaxial, 1x Toslink optical, 1x Bluetooth (IOTAVX Bluetooth Adapter notwendig), 1x Phono (MM) (Input sensitivity 2,5mV)
Loudspeaker Output, 1x Sub Out, 1x Pre Out, 1x Headphone Out
115VAC or 230VAC, @ 50/60Hz
<0.5W
>105dB (32W, A-Weighting)
