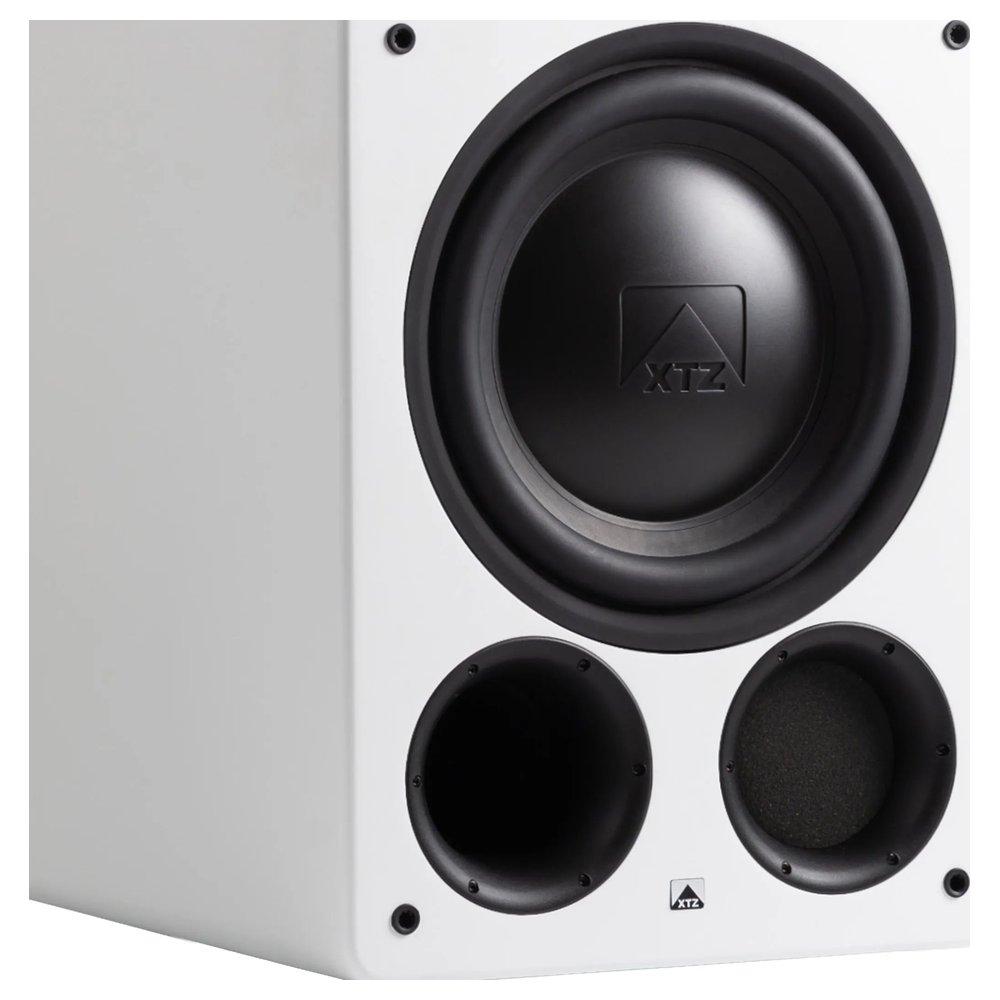

XTZ - SUB 10.17 Edge


10-inch high-end home theater subwoofer

The SUB 10.17 EDGE is a compact yet powerful subwoofer designed for outstanding performance in both music and home cinema systems. Powered by advanced ICEpower technology it delivers 700W RMS and a peak of 1045Wproviding deep extension explosive dynamics and precise control.

Its ultra-light rigid driver developed from our acclaimed Cinema series ensures fast accurate responsemaking it agile enough for detailed music playback while delivering the depth and power needed for immersive movie experiences.

With flexible tuning options and a heavily braced cabinet for maximum stability the SUB 10.17 EDGE offers exceptional speed power and precisionsetting a new benchmark for performance and value in its class.

Because the product has a job inside the room.

Technical Specifications
Construction Type

10" active hybrid subwoofer (Bass reflex / Sealed)

Amplifier Technology

1 x High-End Class-D, ICEpower Amplifier

Power Output

1045 W Peak / 700 W RMS

Frequency Response

From 180 down to 20 Hz (+/- 3dB)

Power Consumption

0.17 W / 22 W

Woofer Driver

1 x 250 mm (10") High-Speed Ultra-Long-Stroke driver (Polymer reinforced cotton)

Phase Control

Variable 0 - 180°

Crossover Frequency

Variable 40 - 160Hz, Bypass

Dimensions

320 x 430 x 380mm (W x H x D) / 12.7 x 17.1 x 15.1" (Height incl. spikes)

Weight

19.5 kg / 42.9 lbs

Available Colours

Matte black, gloss black, matte white
