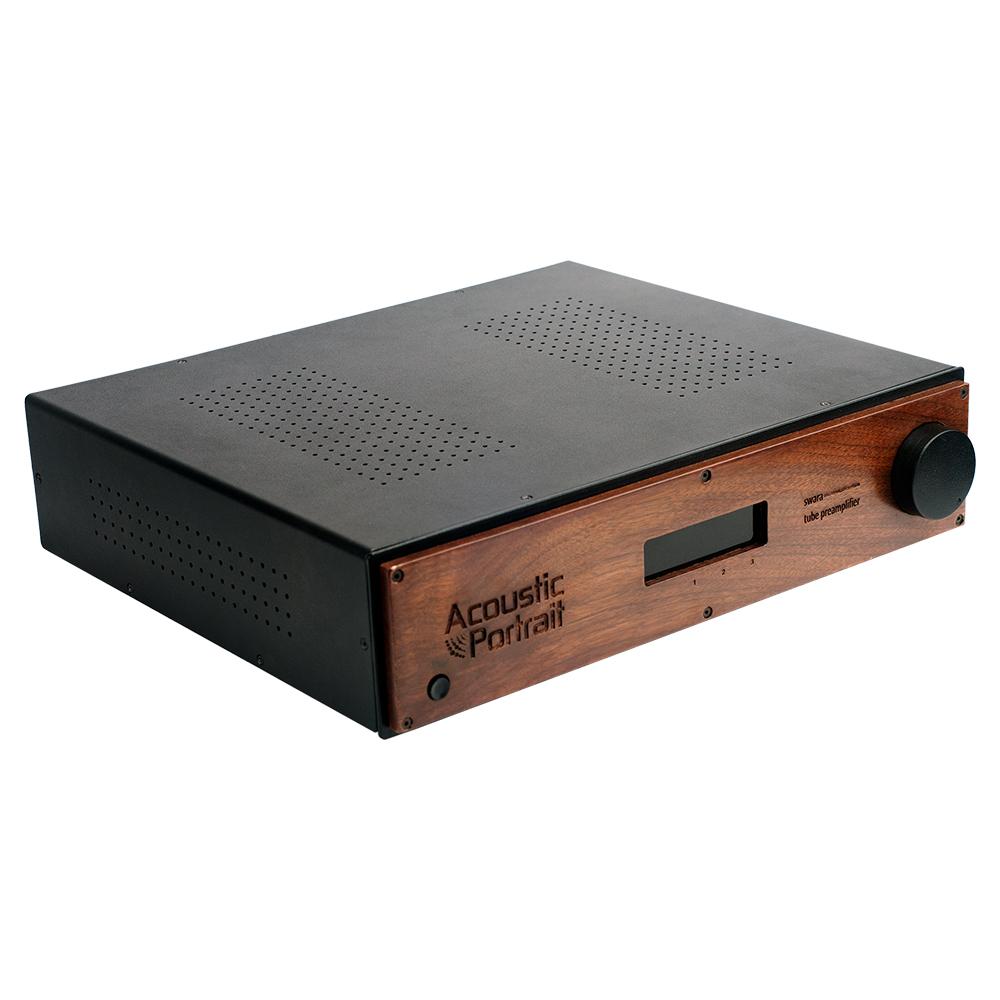

Acoustic Portrait - Swara Tube Preamplifier


Swara Tube Preamplifier

Over 15 years ago, Acoustic Portrait launched its first Vacuum-tube amplifier–PM1, which was one of our best-selling product and highly regarded by audiophiles.

The Swara preamp uses two 6n2p vacuum tubes. Typical of all AP products, the preamp offers high-fidelity audio reproduction, with a neutral, dynamic and highly resolving sonics. We kept the distortions to a minimum, and the use of vacuum tubes only adds a subtle tonal elegance.

The preamp has proven credential to work with any power amplifier available in the market and enhance the overall experience of the sound. Our experience with a variety of components has enabled us to manufacture a very high-quality preamp at a price that was never possible before. Only the very best quality components are used throughout the preamp and its sonic performance is world class, and rivals other products that cost significantly more.

Because the product has a job inside the room.

Preamp based on 6n2P vaccumm tubes
Motorized Alps Potentiometer, for the very best in volume control
Highly rated Belden cable for internal wiring
Transparent, dynamic, & high resolution audio reproduction
Industrial grade enclosure made with heavy gauge steel
Custom made soft rubber feet for mechanical isolation
Technical Specifications
Frequency Response

10Hz - 22kHz

Distortion

<0.03%

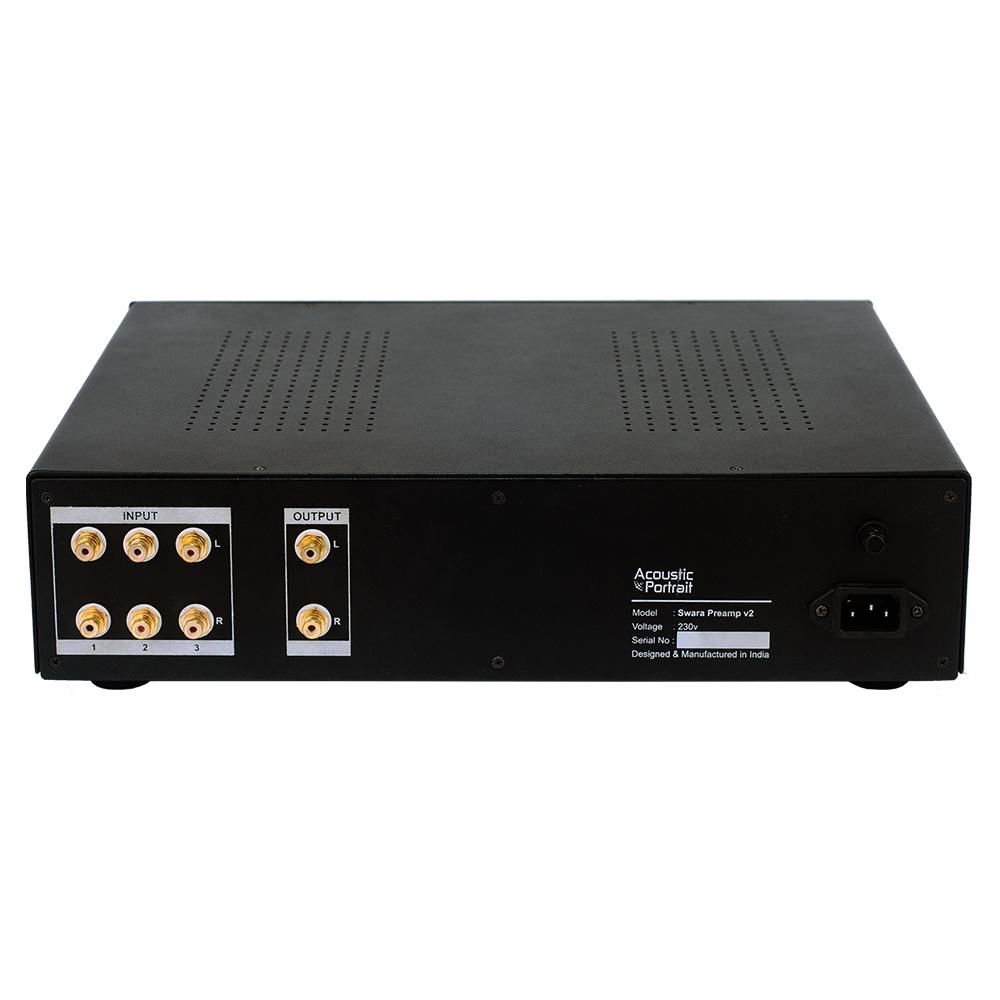

Inputs

3 x Single Ended; Selection with remote

Dimensions

33.5 x 34 x 11 cm / 13.5" (W) x 13.2" (D) x 4.3" (H)

Weight

5 kg

Additional Specs

Tubes: 2 x 6n2P
Output Impedance: 280Ω

Snr

118dB
