Tube Preamplifier
Thiyaga Tube preamp packs some of the most modern electronic components, circuit design and components, but complimented well by the sonic magic of Vacuum tubes.
The preamp comes with the choice of balanced inputs and outputs. The knob on the front helps to select input and control volume and we can perform both these actions using the included remote as well.
Two toroidal transformers made with pure copper and 8 different power supplies for optimal sonics.
Because the product has a job inside the room.
Tube compliment of 12AU7 x 2 and 6N1P x 2

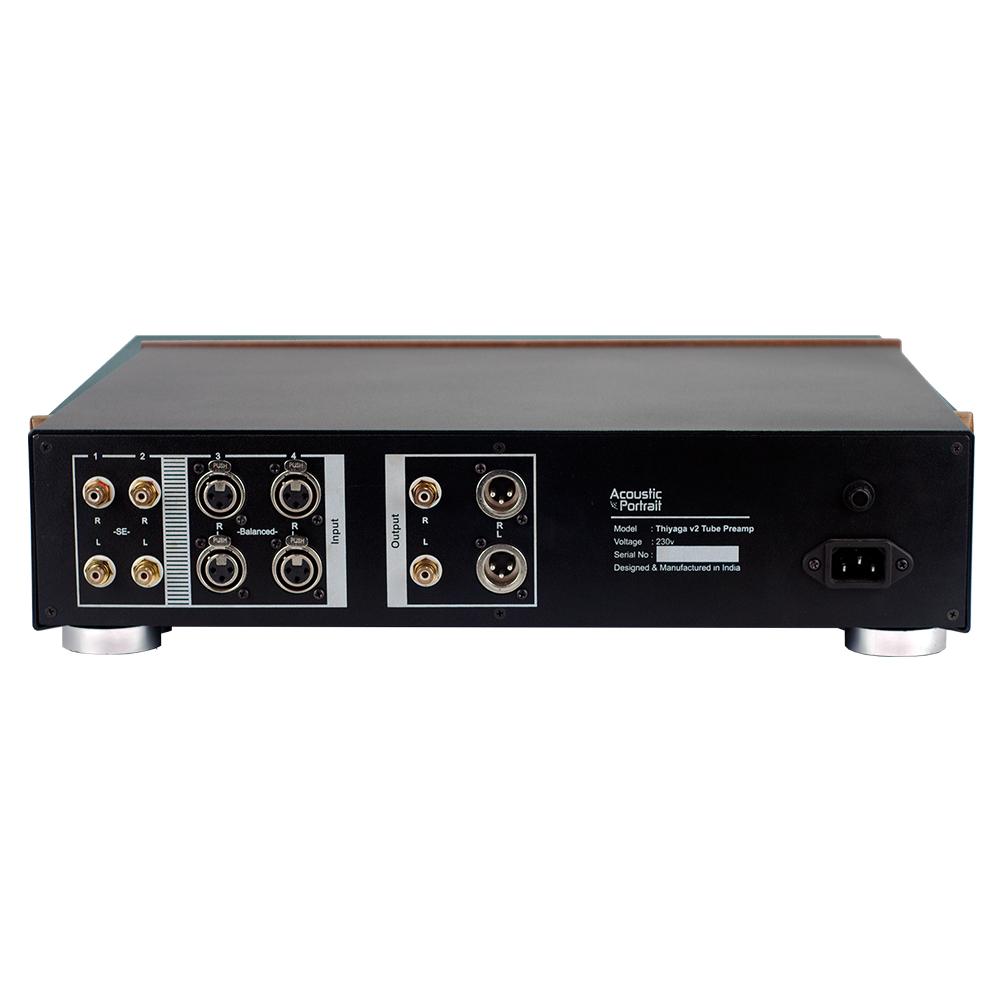

Balanced input and output
Modern attenuator replaces carbon potentiometer for lower distortion
High grade and elaborate power supply
Rigid enclosure made with a combination of steel and aluminium

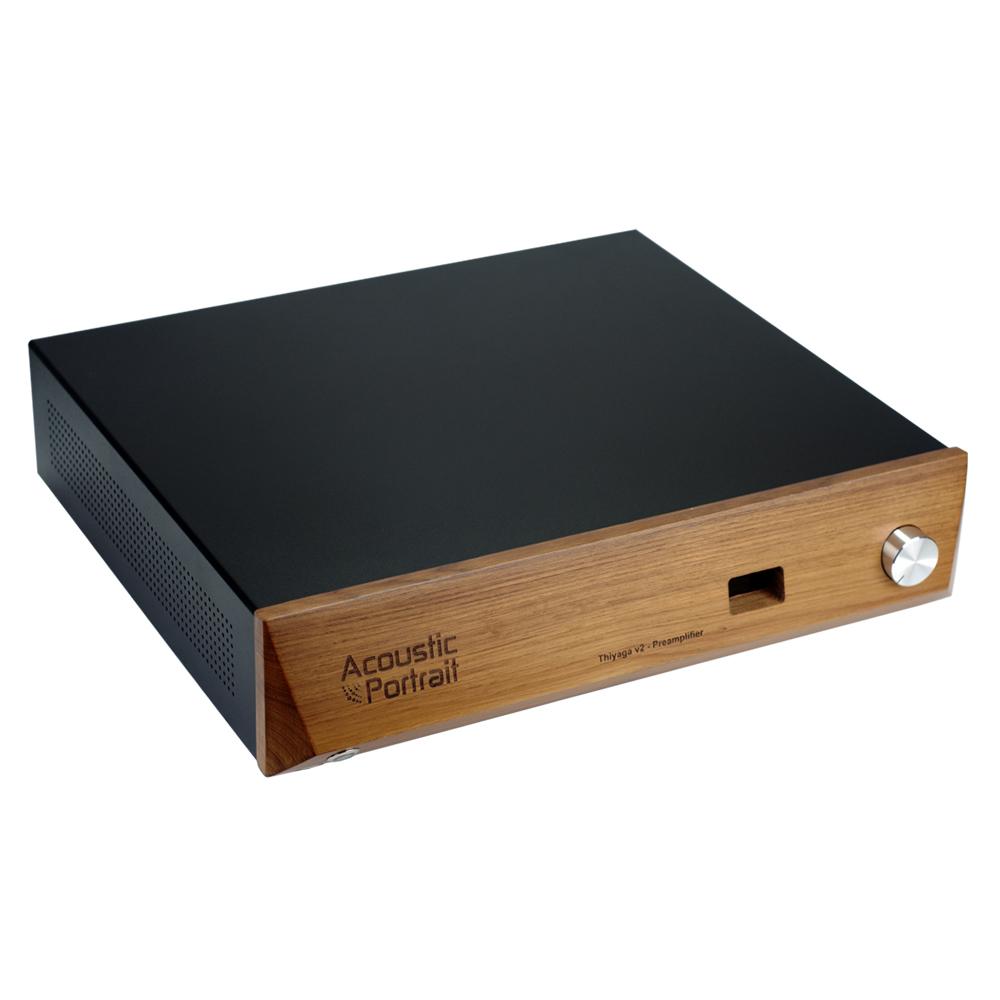

Thick and sculpted Burma teak front panel
Technical Specifications
Frequency Response
20Hz - 22kHz
Distortion
<0.05%
Inputs
2 x Single Ended
2 x Balanced
Outputs
1 x Single Ended
1 x Balanced
Dimensions
440 (W) x 390 (D) x 108 (H) mm
Weight
7 kg
Additional Specs
Tubes: 2 x 12AU7
2 x 6n1P
Output Impedance: 350Ω
Input Gain: 17dB
Snr
112 dB
