Acoustic Portrait - Thiyaga V2 SE DAC

Digital to Analogue Converter

Regardless of music genre, we promise you will hear much more detail and experience deeper emotion from tracks you have heard over a hundred times.

Thiyaga v2 SE DAC is a world class digital to analogue converter based on the incredible ESS Sabre ES9028PRO 32 bit, 8 channel pro series DAC. The chip leverages the ESS patented HyperStream DAC technology for outstanding performance with 129dB dynamic range (DNR) and it has proved to be one the best DAC chip available in the world today.

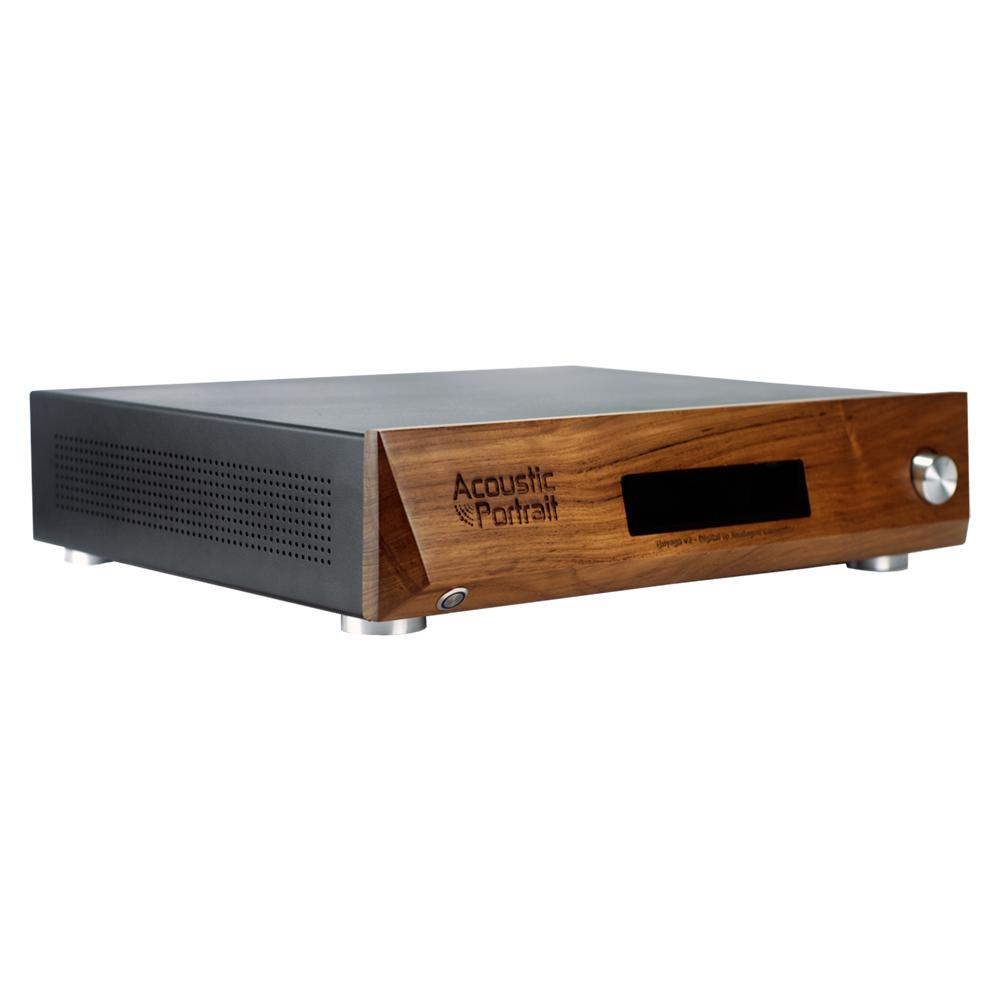

The DAC comes with a large OLED display and a remote for volume control and source selection.

Because the product has a job inside the room.

Async USB input that supports up to 32 bit/ 384 kHz PCM and DSD

Galvani isolation of USB input to isolate the noise from PC/Streamer

There are 11 voltage regulators for a very elaborative power supply

Separate transformers for the digital and output stages

Vacuum tube output stage

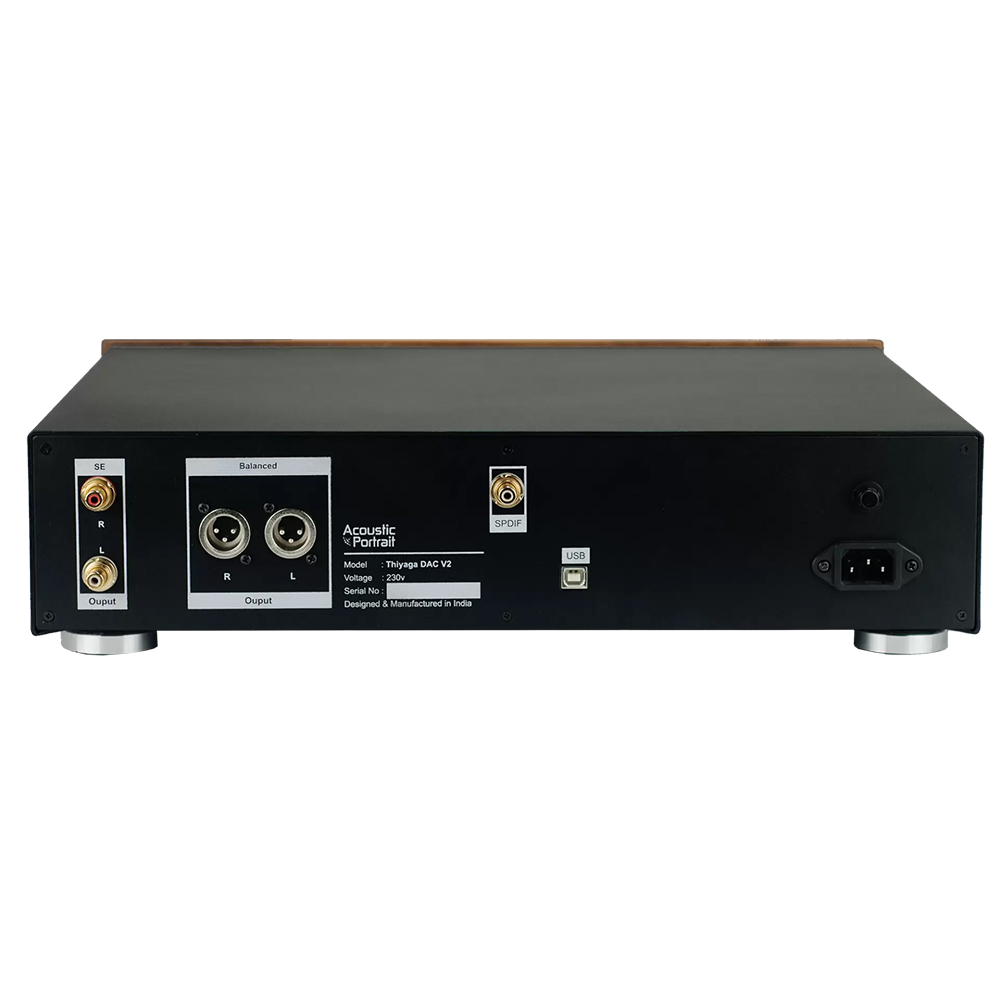

Single Ended & Balanced output

Technical Specifications

Construction Type

Digital to Analogue Converter

Distortion

<0.03% @ 1kHz

Inputs

1 x OEM Amanero USB Module
1 x SPDIF Input

Dimensions

44 x 40 x 11 cm / 17" (W) x 15" (D) x 4.25" (H)

Weight

9 kg

Additional Specs

Dynamic Range: 129dB
Output Impedance: RCA (Consumer) + Balanced (Professional) Output

Formats

PCM - 32 bit; 44.1KHz 48KHz 88.2KHz 96KHz 176.4KHz 192KHz 352.8KHz 384KHz
DSD - DSD64,DSD128
DSD - DSD256,DSD512 (Windows Only)

Snr

108 dB
