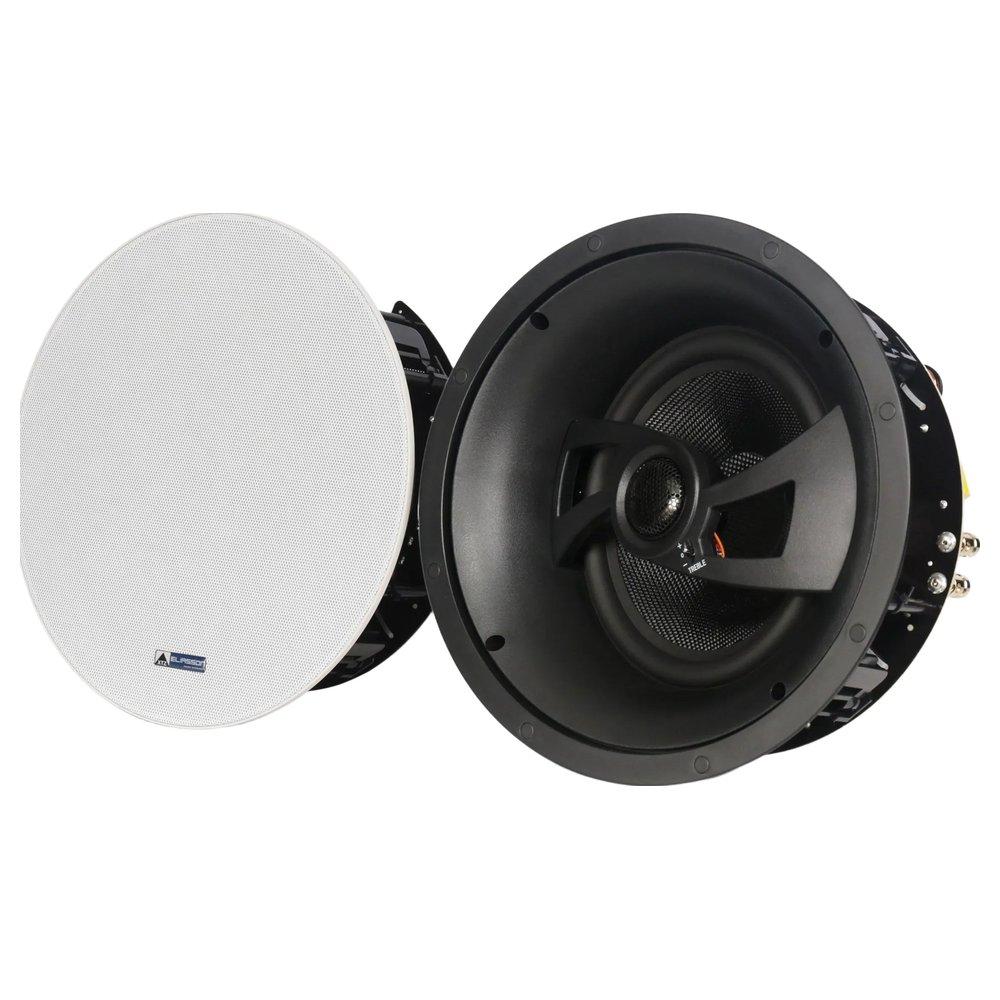

XTZ - InCeiling E-IC8


Built-in ceiling speakers with powerful bass

The E-IC8 is a powerful and flexible multi-purpose in-ceiling loudspeaker designed to deliver immersive and highly detailed overhead sound.

Its an ideal choice not only for height channels in Dolby Atmos DTS:X and Auro-3D setups but also for ambient music.

Its angled coaxial design ensures that sound reaches the listening position with enhanced directionality and clarity allowing precise placement slightly in front of and behind the audience for a seamless surround experience.

Because the product has a job inside the room.

15° angled baffle for Improved Height Effects

Titanium Tweeter for Crisp, Detailed Highs

Three-Level 3dB Tweeter EQ for Room Tuning

Aimable Tweeter (±15°) for Accurate Imaging

8" Fiberglass Woofer for Tight, Accurate Bass

Magnetic Low-Profile Grille that is Paintable

Technical Specifications
Construction Type

2-way in-ceiling speaker

Frequency Response

52 Hz - 25 kHz (+/- 3 dB)

Tweeter Driver

1 x 25 mm (1 inch) titanium dome

Midrange Woofer Driver

1 x 203 mm (8 inch) Woven fiberglass composite cone

Nominal Impedance

8 Ohm

Sensitivity

89 dB (2.83 V/1 m)

Power Handling

200 W Short term IEC 268-5, 100 W Long term IEC 268-5

Dimensions

Diameter 287 mm / 11.3", depth 178 mm / 7"

Weight

2.9 kg / 6.4 lbs

Available Colours

Black
