XTZ - InWall OnWall E-IW61


Discreet in-wall on-wall speakers for home theater and music

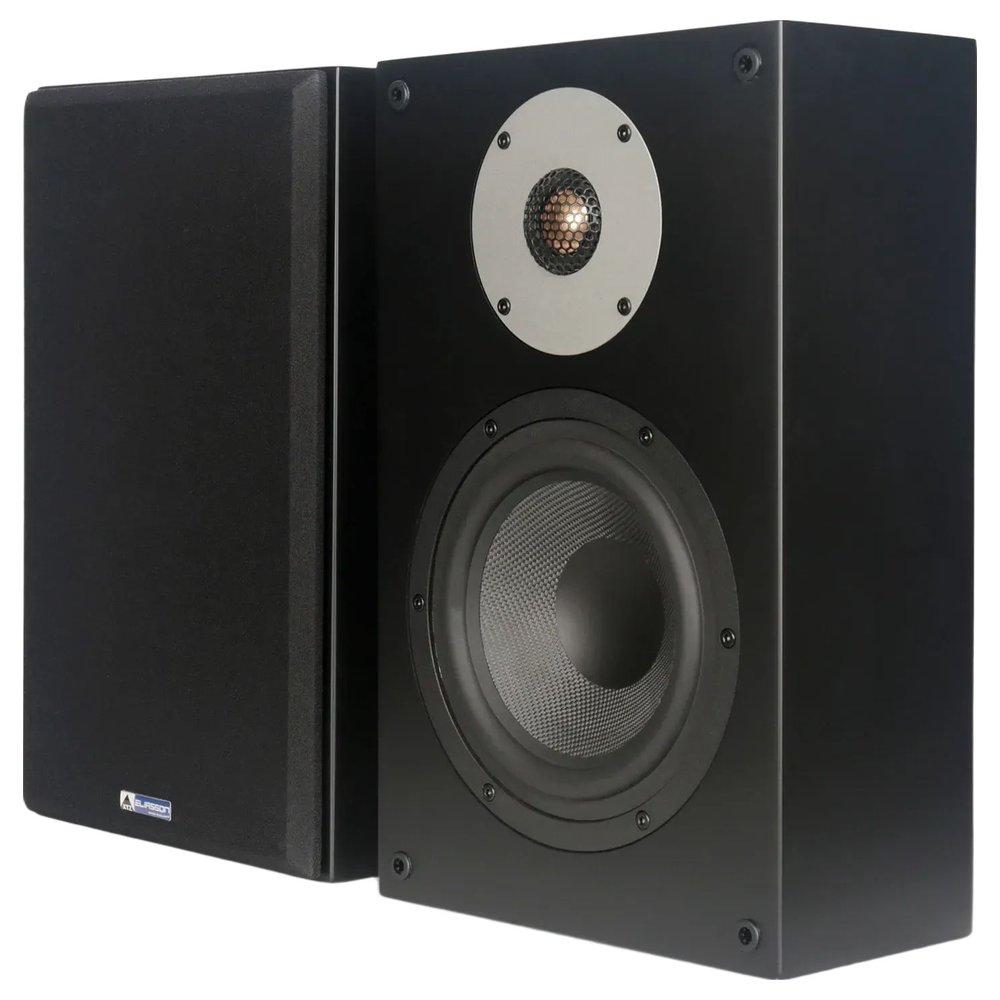

The XTZ E-IW61 is a compact 2-way speaker designed for on-wall or in-wall use in purpose-built home cinemas.

Whether installed as side or rear surrounds or used in media room setups with clean aesthetics it delivers precise detail impressive dynamics and seamless spatial integration from a remarkably slim and refined form factor.

With a depth of just 117 mm and a sealed cabinet the E-IW61 is easy to install directly on the wall or flush-mounted into a shallow cavitywithout needing rear clearance or additional air volume.

Because the product has a job inside the room.

Compact size, cinema-grade performance
1" Al/Mg tweeter for clear, controlled treble
Handles high SPL with clean, dynamic playback
Discreet 117 mm on-wall installation
Fast, low-distortion bass from kevlar woofer
Voiced for accurate surround playback
Technical Specifications
Construction Type

2-way In-Wall / On-wall speaker

Frequency Response

90 - 30.000 Hz (+/- 3dB)

Tweeter Driver

1 x 25 mm (1 inch) Aluminium-magnesium alloy dome

Midrange Woofer Driver

1 x 165 mm (6.5 inch) Kevlar composite cone

Nominal Impedance

4 Ohm

Sensitivity

90 dB (2,83 V/1 m)

Power Handling

160 W Short term, 80 W Long term

Dimensions

220 x 350 x 117 mm / 8.7 x 13.8 x 4.6"

Weight

5.8 kg / 12.8 lbs

Available Colours

Matte black

Warranty

5 years

Additional Specs

Connections: Gold plated
Cover: Black fabric, plug-in / detachable

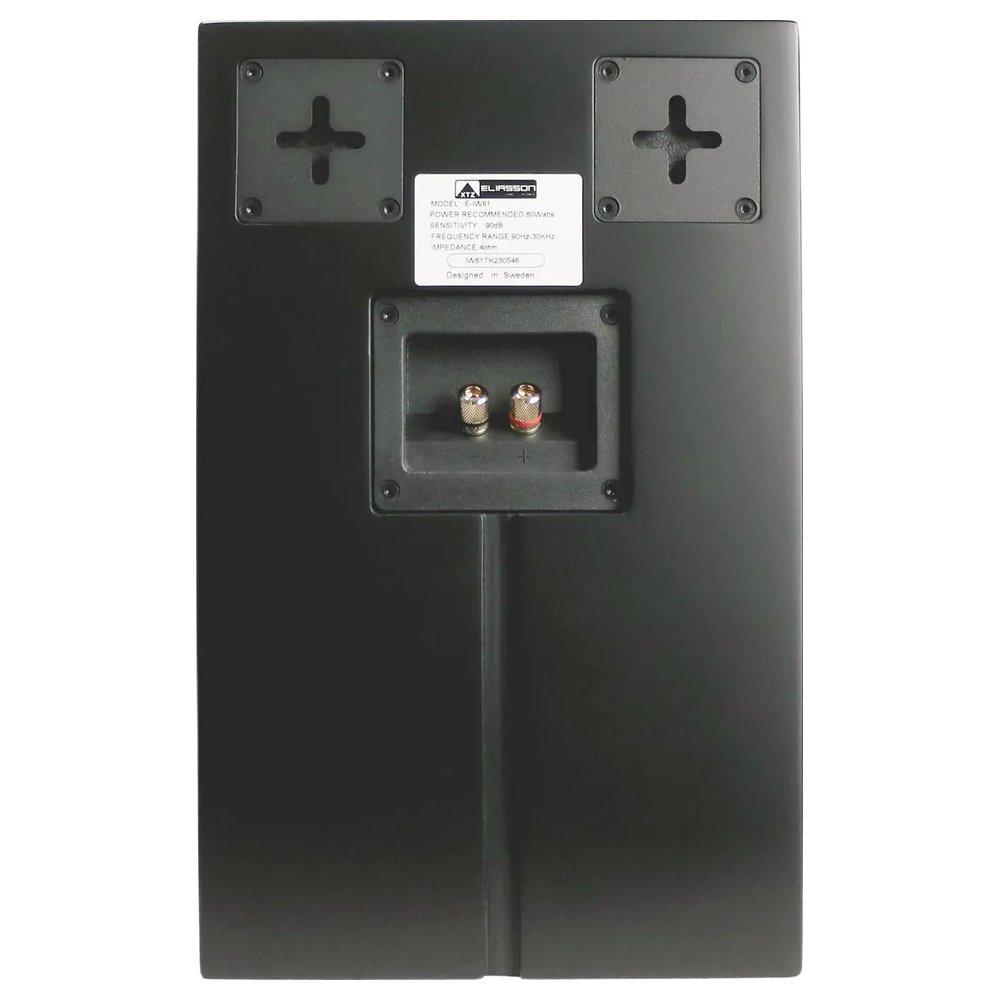

Wall mounting: Keyhole mounting slots
Quantity: 1 Pair
