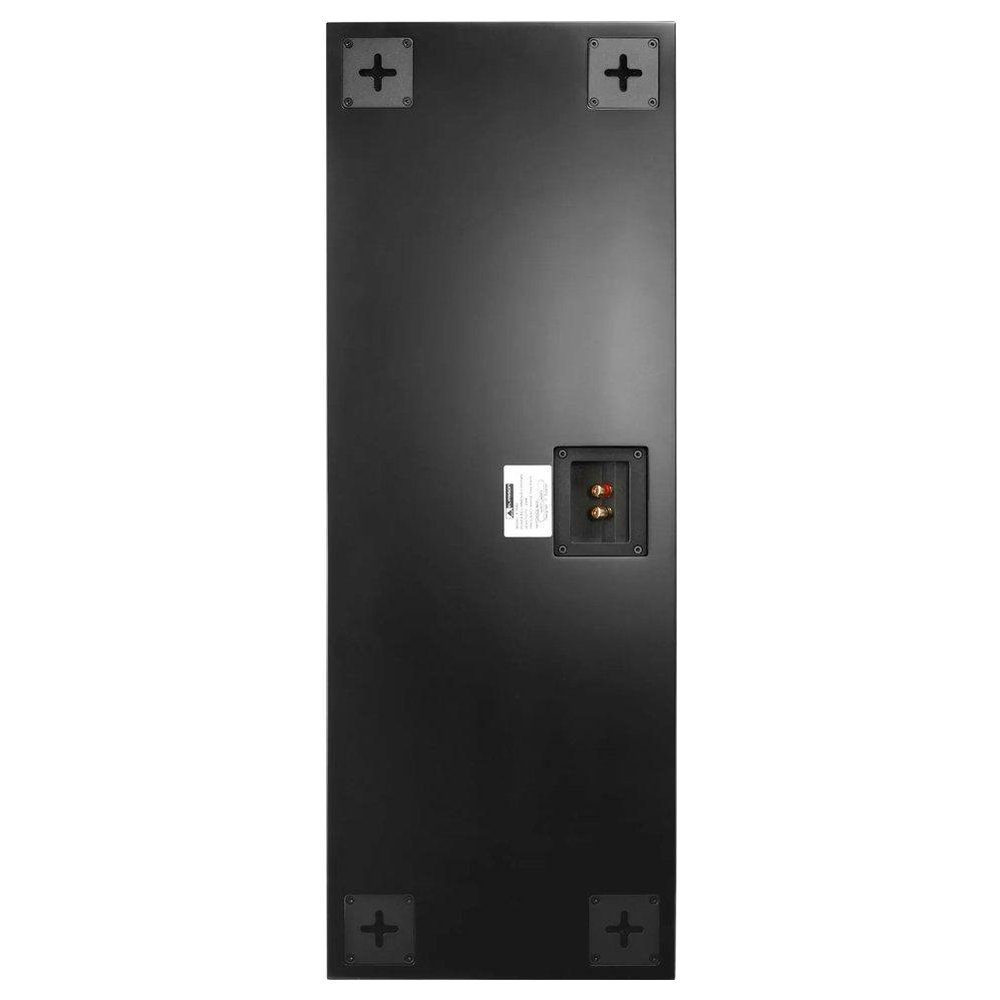

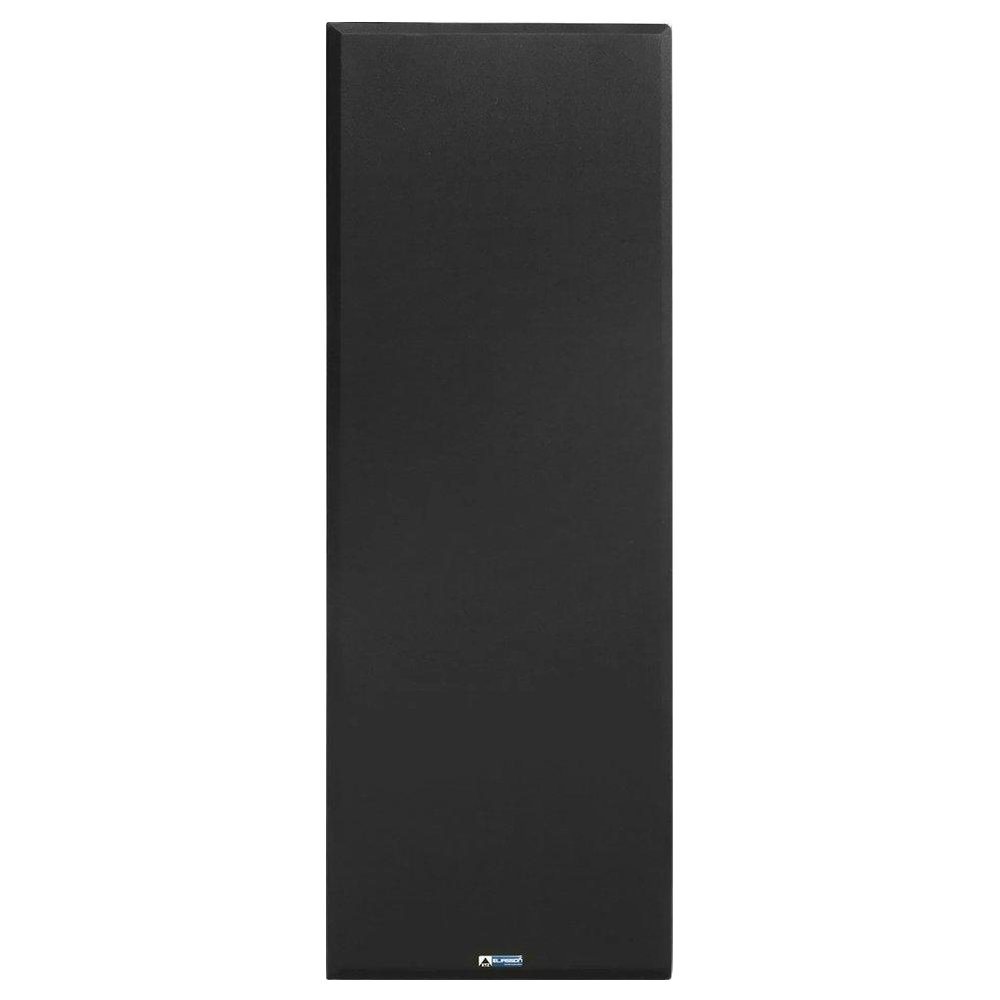

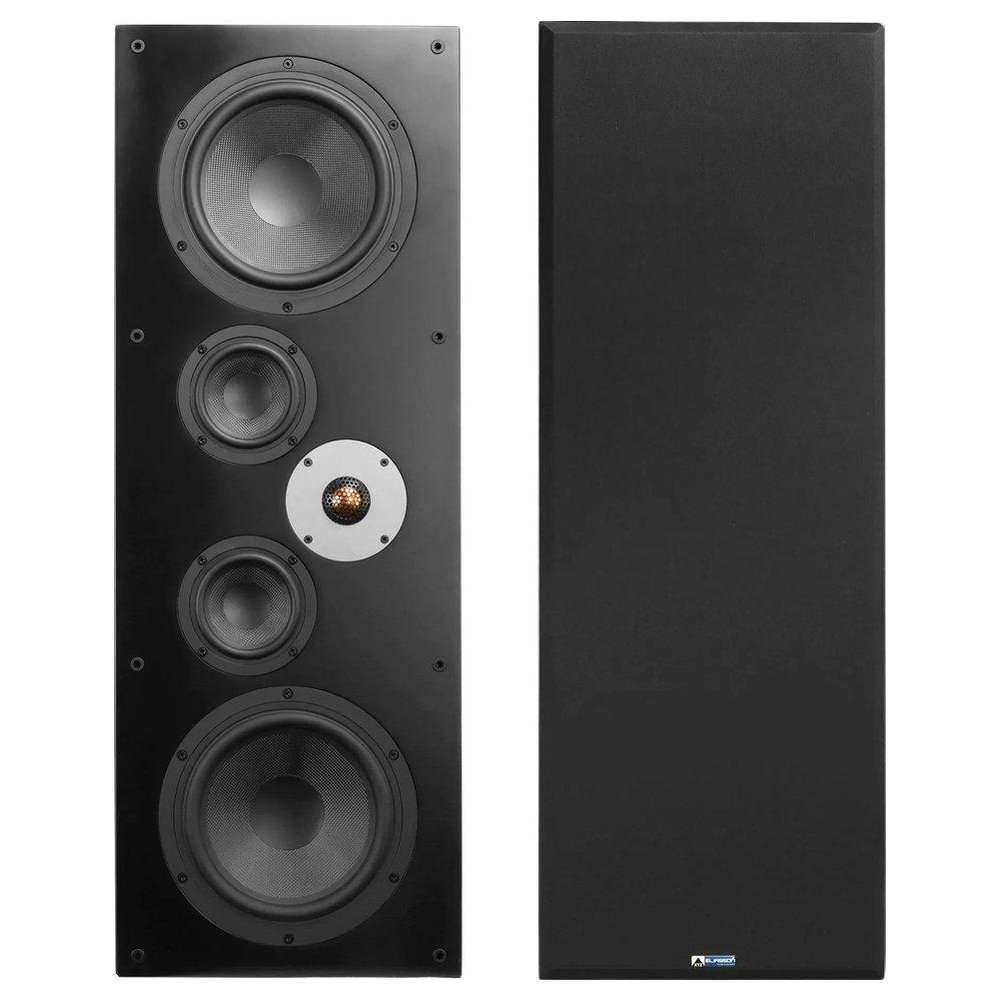

XTZ - InWall OnWall E-IW82


High-end 3-way in-wall speakers for exclusive home cinema

The E-IW82 is the largest and most powerful speaker in XTZs INWALL Series.

Built for purpose-built home cinemas that demand maximum output detail and clarity from a speaker that can disappear into the wall. With a sealed cabinet ultra-slim 117 mm depth and a true 3-way 5-driver layout it delivers the scale dynamics and low-end authority normally associated with far bulkier speakers.

Whether installed in a baffle wall behind an acoustically transparent screen or mounted on-wall in a high-performance theater the E-IW82 delivers an immersive soundstage with outstanding clarity

Because the product has a job inside the room.

Discreet 117 mm on-wall installation
1" Al/Mg tweeter for clear, controlled treble
Handles high SPL with clean, dynamic playback
Compact size, cinema-grade performance
All kevlar drivers for fast, detailed dynamics
Extends to 70 Hz with clean, controlled bass
Technical Specifications
Construction Type

3-way In-wall / On-wall speaker

Frequency Response

70 - 30.000 Hz (+/- 3dB)

Tweeter Driver

1 x 25 mm (1 inch) aluminum-magnesium alloy dome

Midrange Woofer Driver

2 x 101 mm (4 inch) Kevlar composite cone

Woofer Driver

2 x 203 mm (8 inch) Kevlar composite cone

Nominal Impedance

4 Ohm

Sensitivity

93 dB (2,83 V/1 m)

Power Handling

300 W Short term, 150 W Long term

Dimensions

300 x 820 x 117 mm (W x H x D) / 11.8 x 32.3 x 4.6"

Weight

16 kg / 35.3 lbs

Available Colours

Matte black
