XTZ - InWall OnWall E-IW8


Discreet wall/flush-mount speaker with great sound

The E-IW8 is a flexible 3-way in-wall speaker designed for purpose-built home cinemas where both performance and integration matter.

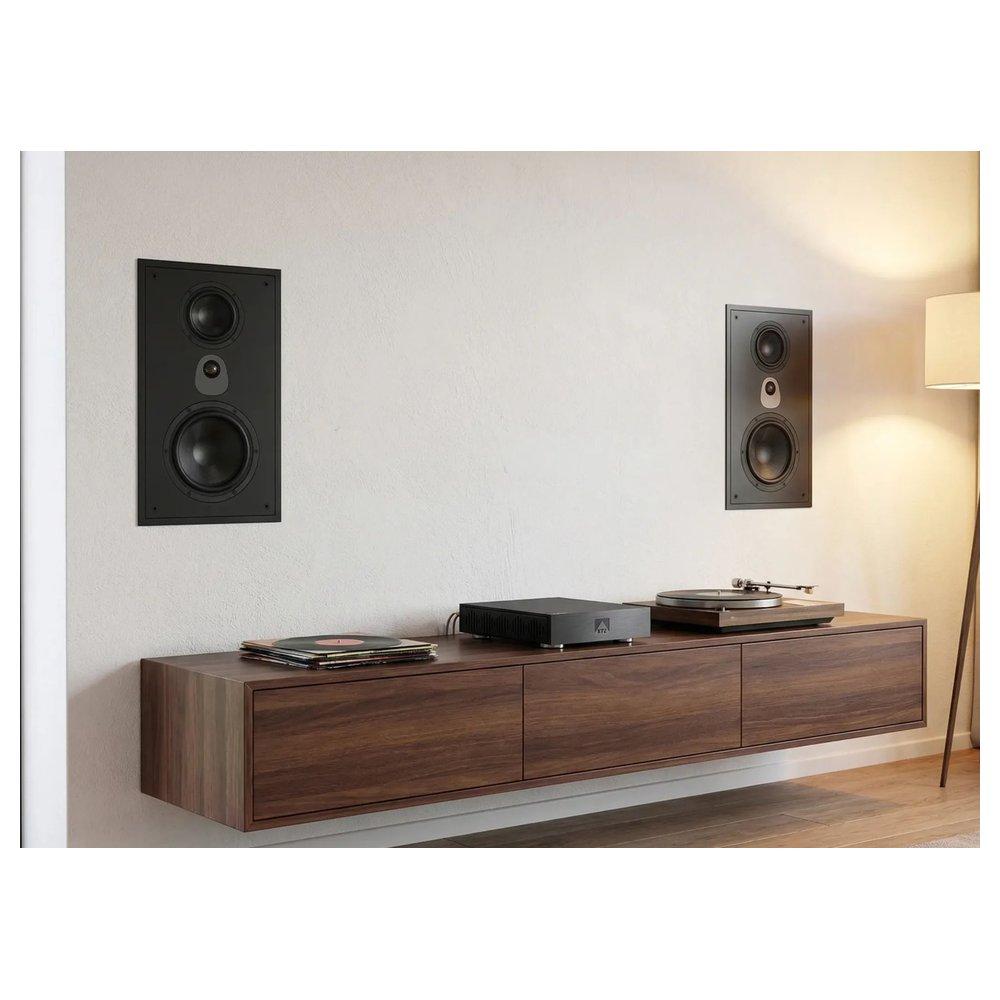

Whether flush-mounted behind an acoustically transparent screen or used on-wall in a modern media room it delivers a wide immersive soundstage and deep dynamicswhile its sealed cabinet and slim 117 mm profile allow it to virtually disappear into the wall.

With its compact footprint the E-IW8 is ideal for use as a left center or right speaker behind a screen where space for a vertical center is available. It can also be used as a more powerful surround speaker.

Because the product has a job inside the room.

Discreet 117 mm on-wall installation

1" Al/Mg tweeter for clear, controlled treble

Handles high SPL with clean, dynamic playback

Compact size, cinema-grade performance

All kevlar drivers for fast, detailed dynamics

Extends to 80 Hz with clean, controlled bass

Technical Specifications
Construction Type

3-way In-wall / On-wall speaker

Frequency Response

80 - 30.000 Hz (+/- 3dB)

Tweeter Driver

1 x 25 mm (1 inch) aluminum-magnesium alloy dome

Midrange Woofer Driver

1 x 130 mm (5 inch) Kevlar composite cone

Woofer Driver

1 x 203 mm (8 inch) Kevlar composite cone

Nominal Impedance

4 Ohm

Sensitivity

93 dB (2,83 V/1 m)

Power Handling

240 W Short term, 120 W Long term

Dimensions

300 x 550 x 117 mm (W x H x D) / 11.8 x 21.7 x 4.6"

Weight

10 kg / 22 lbs

Available Colours

Matte black
